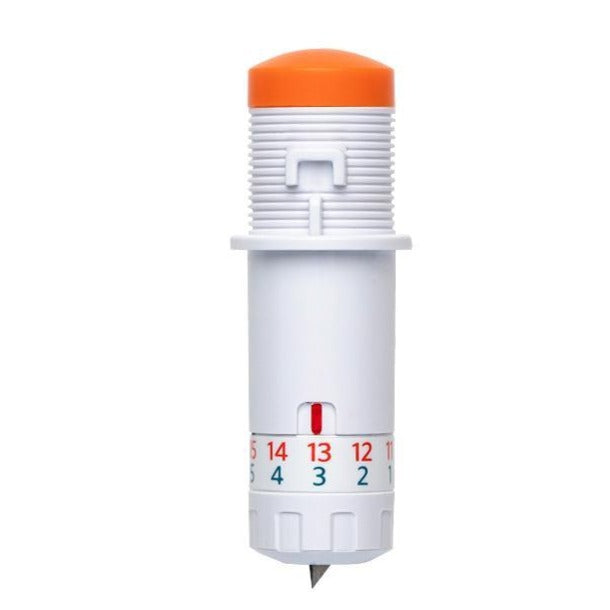

2mm Kraft Blade - Type A

SilhouetteSKU: SILH-BLADE-KRAFT

Price:
Sale price$32.00

Shipping calculated at checkout

Stock:
In stock

Description

The Silhouette 2mm Kraft Blade is designed for cutting thick materials like chipboard, acetate, leather, and craft foam. It is compatible with select Silhouette machines including CAMEO 4, CAMEO 4 Plus, Portrait 4, and Curio. This blade allows for precise cutting through dense materials.

  • Blade Type: A
  • Blade Material: Tungsten Alloy
  • Cutting Depth: Up to 2mm
  • Adjustment Method: Manual (ratchet) adjustment
  • Compatible Machines: CAMEO 4, CAMEO 4 Plus, Portrait 4, Curio
  • Includes: 2 blades per pack
  • UPC: 819177025578

To use the Silhouette 2mm Kraft Blade:

  1. Insert the 2mm Kraft Blade into the appropriate tool carriage on your Silhouette machine.
  2. If using a machine that requires a white tool adapter (CAMEO 4, Portrait 4, Curio 2, etc.), insert the adapter into the tool carriage before placing the blade.
  3. Manually adjust the blade depth using the ratchet mechanism. Turn the cap to align the red line with the desired material thickness (from 0.1mm to 2mm).
  4. Place your material onto the cutting mat and load it into the machine.
  5. In Silhouette Studio®, select the appropriate material settings for the material you’re cutting (chipboard, acetate, leather, craft foam, etc.).
  6. Send the cutting job to the machine and monitor the progress to ensure a clean cut.
  7. After cutting is completed, remove the material from the mat and gently remove it from the blade.

Tip: Always clean the blade after use by wiping it gently with a soft cloth to remove any debris and store it in a safe place.

Model Compatibility
CAMEO PRO MK‑II ✔ (Requires White Tool Adapter)
CAMEO 5 ✔ (Requires White Tool Adapter)
CAMEO 5 Plus ✔ (Requires White Tool Adapter)
CAMEO 4 ✔ (Requires White Tool Adapter)
CAMEO 4 Plus ✔ (Requires White Tool Adapter)
CAMEO 4 Pro ✔ (Requires White Tool Adapter)
CAMEO 3
CAMEO 2
CAMEO 1
Portrait 4 ✔ (Requires White Tool Adapter)
Portrait 3 ✔ (Requires White Tool Adapter)
Portrait 2
Portrait 1
Curio 2 ✔ (Requires White Tool Adapter)
Curio 1

🛠️ Based on Silhouette’s official tool compatibility guide. View Guide

Q: What materials can the 2mm Kraft Blade cut?

A: The 2mm Kraft Blade is designed to cut thick materials such as chipboard, acetate, leather, and craft foam. It provides precise cuts for these dense materials.

Q: Do I need an adapter to use the Kraft Blade with my machine?

A: For the CAMEO 4, the Kraft Blade requires the white adapter and should be placed in the left tool carriage. For other compatible machines, no adapter is needed.

Q: How do I adjust the blade depth?

A: The blade depth is adjusted manually using the ratchet mechanism. Turn the cap to align the red line with the desired number, corresponding to the material thickness.

Q: How do I clean and maintain the Kraft Blade?

A: After use, clean the blade by gently wiping it with a soft cloth to remove any debris. Store it in a safe place to prevent damage.
