Description
Overview & Features

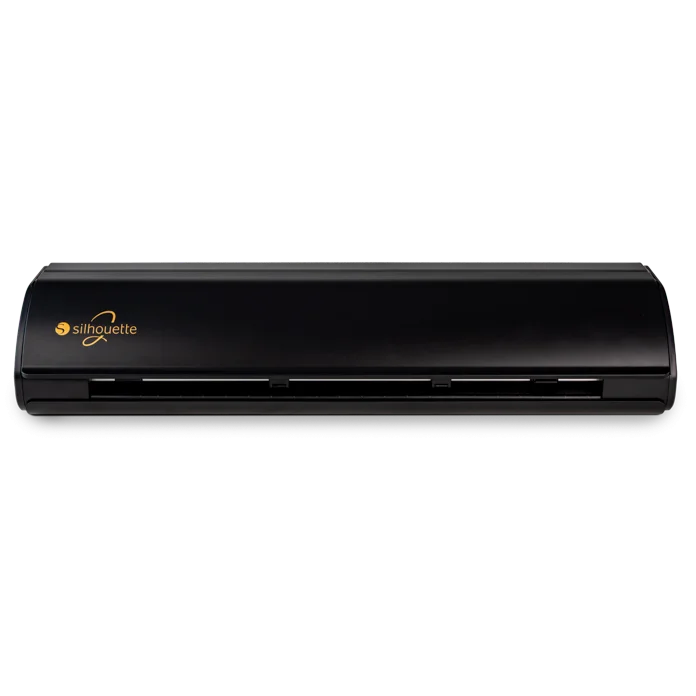

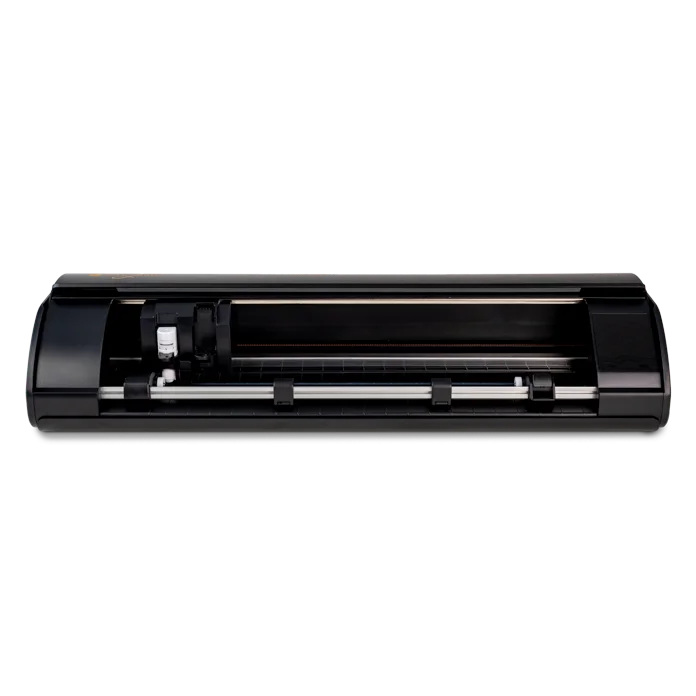

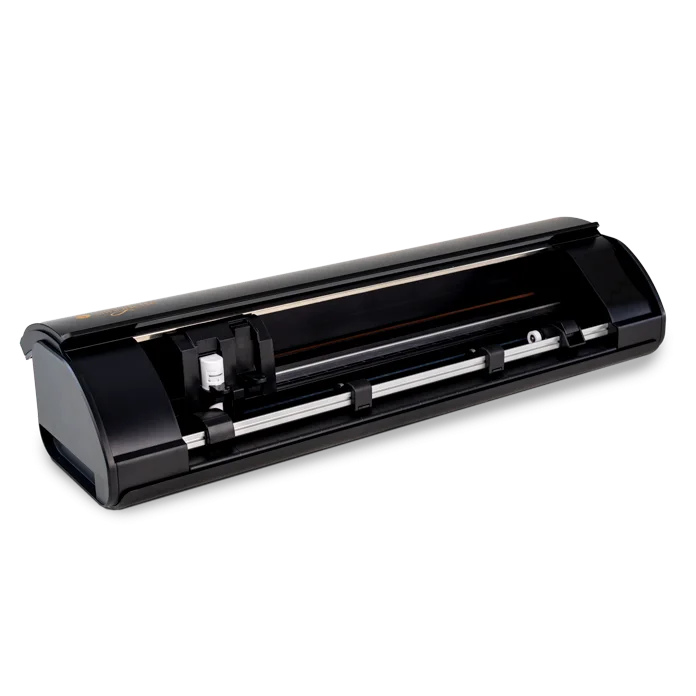

The Silhouette CAMEO5α PLUS (Alpha) scales the trusted CAMEO platform to a 15-inch format while preserving pro-grade accuracy. A refined chassis and four-point registration deliver cleaner Print & Cut results, while Intelligent Path Technology (IPT) optimizes cut order for smoother, tension-free passes—especially on intricate and multi-layer jobs. Quiet operation, an emergency stop, and a front auto crosscutter streamline real-world workflows. USB and Bluetooth® are built in.
Key Features
- 15" class cutting: 14.6" usable width with mat; up to 16 ft with lined material.

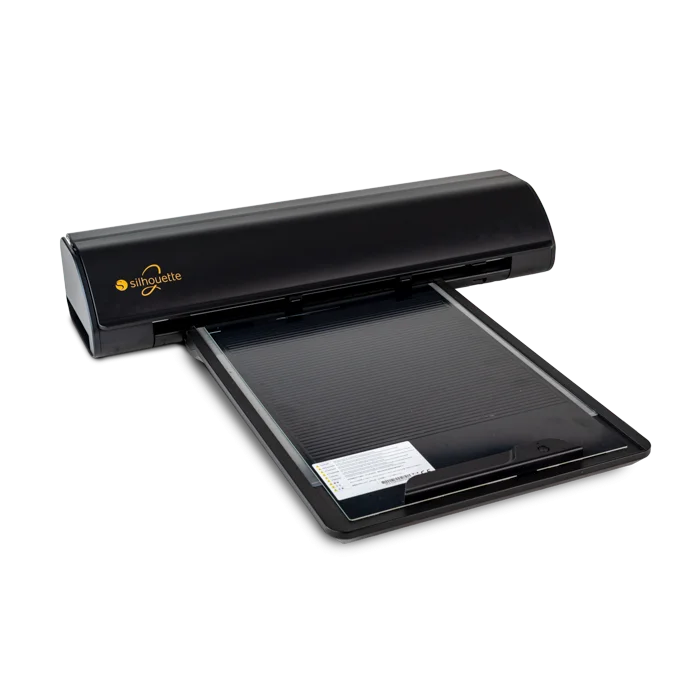

- Electrostatic Mat compatible: Hold thin, delicate media securely without adhesive for weed-free, curl-free handling.
- Intelligent Path Technology (IPT): Optimized cutting order, multi-layer cutting, and predictive corner handling for crisp points.
- Expanded tool range with Power Carriage: Works with Heat Pens (wide/fine/super-fine), Embossing Tool (Type C), Rotary Blade, 3 mm Kraft Blade, Punch Tool, and Pen Holder.
- Enhanced usability: Easy-adjust pinch rollers, faster sketch mode, repeat-job button, quiet operation, and emergency stop.
Technical Specifications
- Cutting Area (with mat): 14.6 in. x 15 in. (37.1 cm x 38.1 cm)

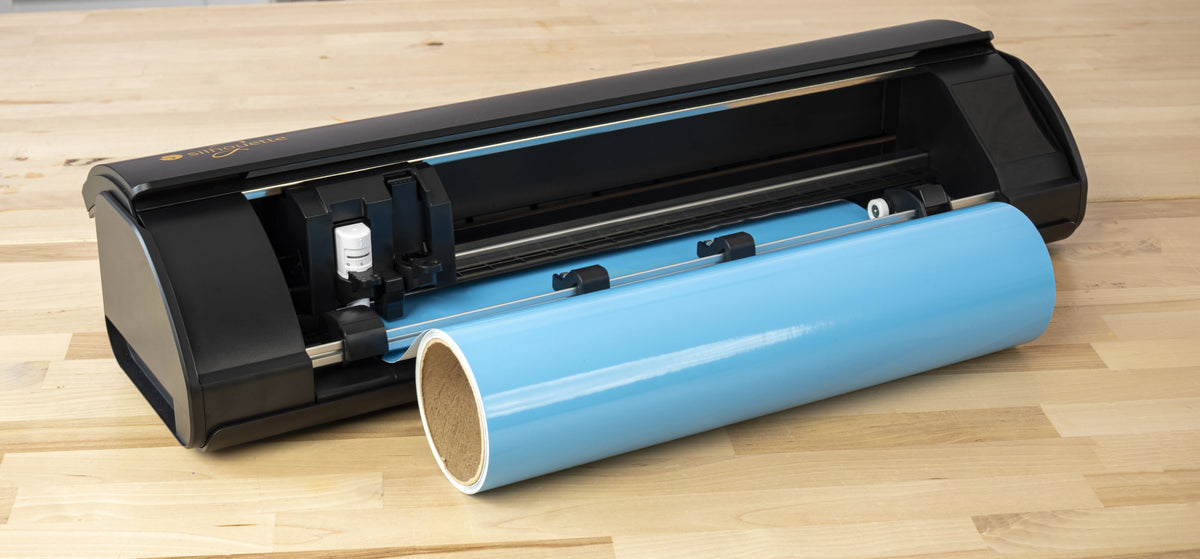

- Maximum Cutting Length (lined material): 16 ft (487.7 cm)
- Maximum Material Thickness: 3 mm
- Maximum Cutting Speed: 1–10 mm/s (1 mm steps), 10–300 mm/s (10 mm steps)
- Resolution: Mechanical 0.00625 mm; Programmable 0.05 mm
- Registration Mark Reading: Yes (four-point Print & Cut supported)
- Tool Holders: Dual; automatic blade adjust
- Interface: USB 2.0 / Bluetooth®
- Power: DC 24 V / 1.25 A (25 W)
- Operating Environment: 16–32°C, 35–70% RH (non-condensing)
- Unit Dimensions: 25.28 in. x 6.94 in. x 4.89 in. (64.2 x 17.6 x 12.4 cm)
- Unit Weight: 12.7 lbs (5.70 kg)
Contains
- Silhouette CAMEO5α PLUS machine
- Cameo Plus Standard Tack Cutting Mat
- AutoBlade
- AC Adapter / Power Cable Set
- Silhouette Sketch Pens Adapter
- Silhouette Studio® Software (Download)
- 100 Exclusive Designs (with registration)
- 1-Month Silhouette Design Store Subscription (with registration)
FAQ, Warranty & Software
FAQ
Q: What is the maximum size I can cut?
A: With mat: 14.6" x 15". With lined materials: up to 16 ft.
Q: What is the maximum material thickness?
A: Up to 3 mm (with appropriate tools/settings).
Q: Does it support Bluetooth®?
A: Yes—you can connect via USB or Bluetooth®.
Q: Is Print & Cut supported?
A: Yes—with four-point registration mark reading.
Warranty
Includes a 1-Year Limited Warranty (USA & Canada). For assistance, contact support@silhouetteamerica.com. Register your device here: Machine Setup & Registration.
Software
Download Silhouette Studio®: Software Page. Tutorials & tips: Silhouette 101 and YouTube Channel.
